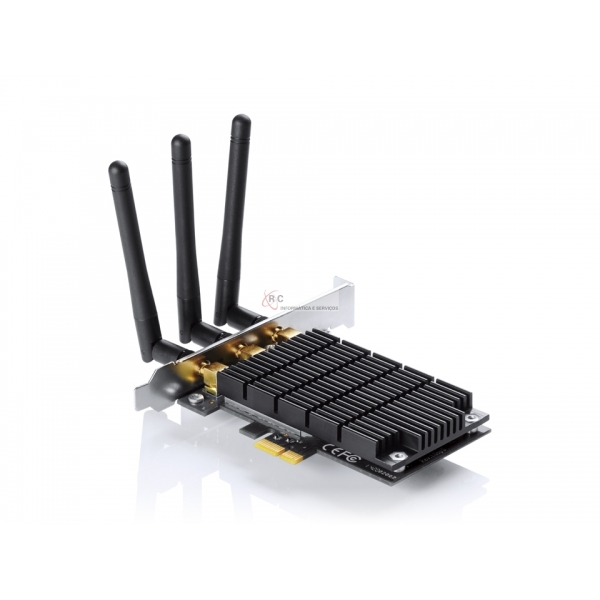

Placa de Rede AC1900 Wireless Dual Band PCI Express TP-Link Maximizar

Placa de Rede AC1900 Wireless Dual Band PCI Express TP-Link

  • Easy Installation – Upgrade your desktop system easily by plugging the Archer T9E Wi-Fi adapter into an available PCI-E slot.
  • Hi-Speed Wi-Fi – Up to 1900Mbps Wi-Fi speeds (1300Mbps on 5GHz band or 600Mpbs on 2.4GHz band)
  • 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for hi-intensity network usage
  • Backward Compatibility – With support for 802.11 a/b/g/n standards
  • Beamforming Technology – Receives more directional Wi-Fi signals, improving speed and reliability
  • Ultimate Range – 3 external antennas ensure a greater range of Wi-Fi connection and stability

Mais detalhes

Archer T9E

2 Other products in the same category

CARACTERÍSTICAS DO HARDWARE

Interface

PCI Express

Dimensions ( W x D x H )

4.5 × 4.8 × 0.8 in. (115.2 × 120.8 × 21.5 mm)

Antenna Type

Omni Directional



WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

5GHz
2.4GHz

Signal Rate

5GHz
11ac: Up to 1300Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 600Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity

5GHz:
11a 6Mbps: -85dBm
11a 54Mbps: -68dBm
11ac HT20: -59dBm
11ac HT40: -54dBm
11ac HT80: -51dBm
2.4GHz:
11b 11Mbps: -80dBm
11g 54Mbps: -68dBm
11n HT20: -64dBm
11n HT40: -61dBm

Transmit Power

<20dBm (EIRP)

Wireless Modes

Ad-Hoc / Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x

Tecnologia de Modulação

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM



OTHERS

Certification

CE, FCC, RoHS

Package Contents

Wireless Adapter Archer T9E
Resource CD
Quick Installation Guide

System Requirements

Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
